>Application Range

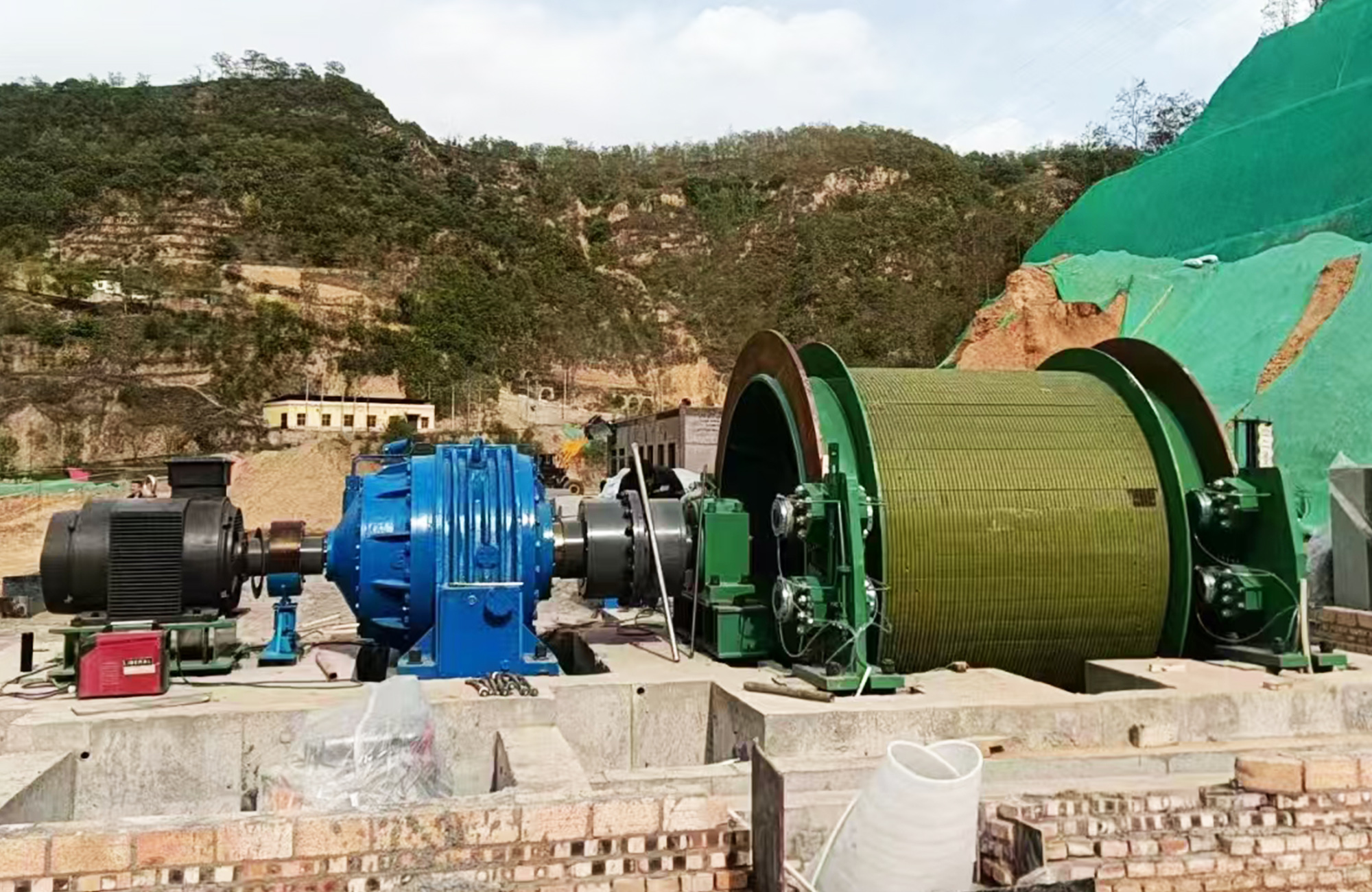

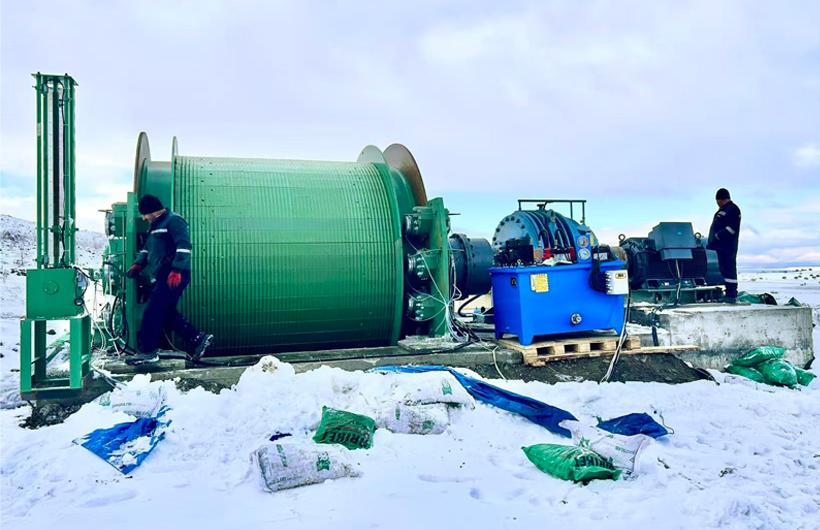

The JK/2JK series single-rope winding mine hoist is suitable for the continuous and efficient transportation of materials, equipment, and personnel weighing 6 to 17 tons. It is widely used in metal and non-metal mines such as gold mines, copper mines, and iron mines. The hoist can be deployed in various scenarios, including surface industrial yards, underground inclined roadways, and medium to large vertical shafts, enabling efficient, reliable, and continuous lifting and lowering of ores, equipment, and personnel.
>Structural Features and Working Principle

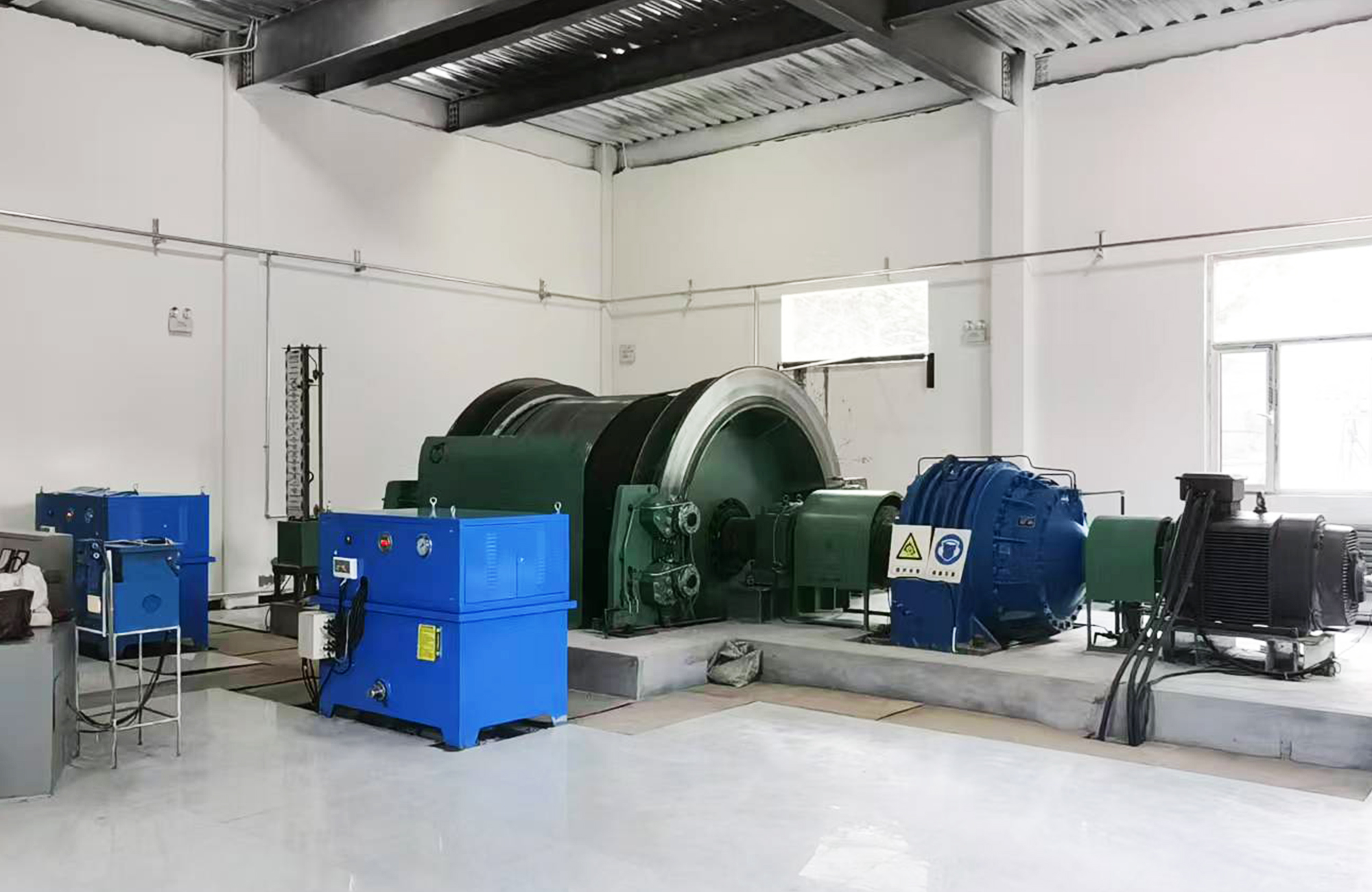

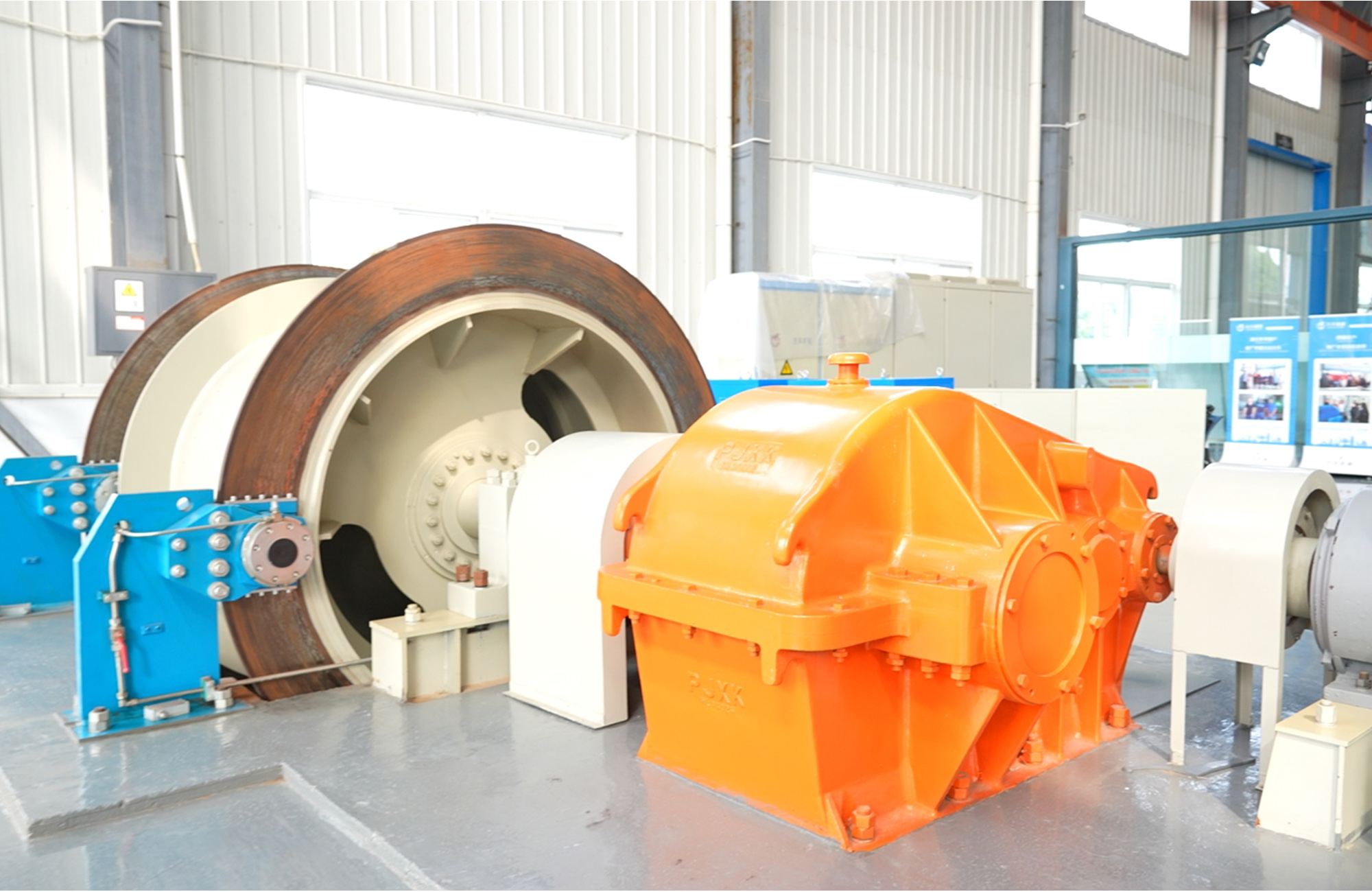

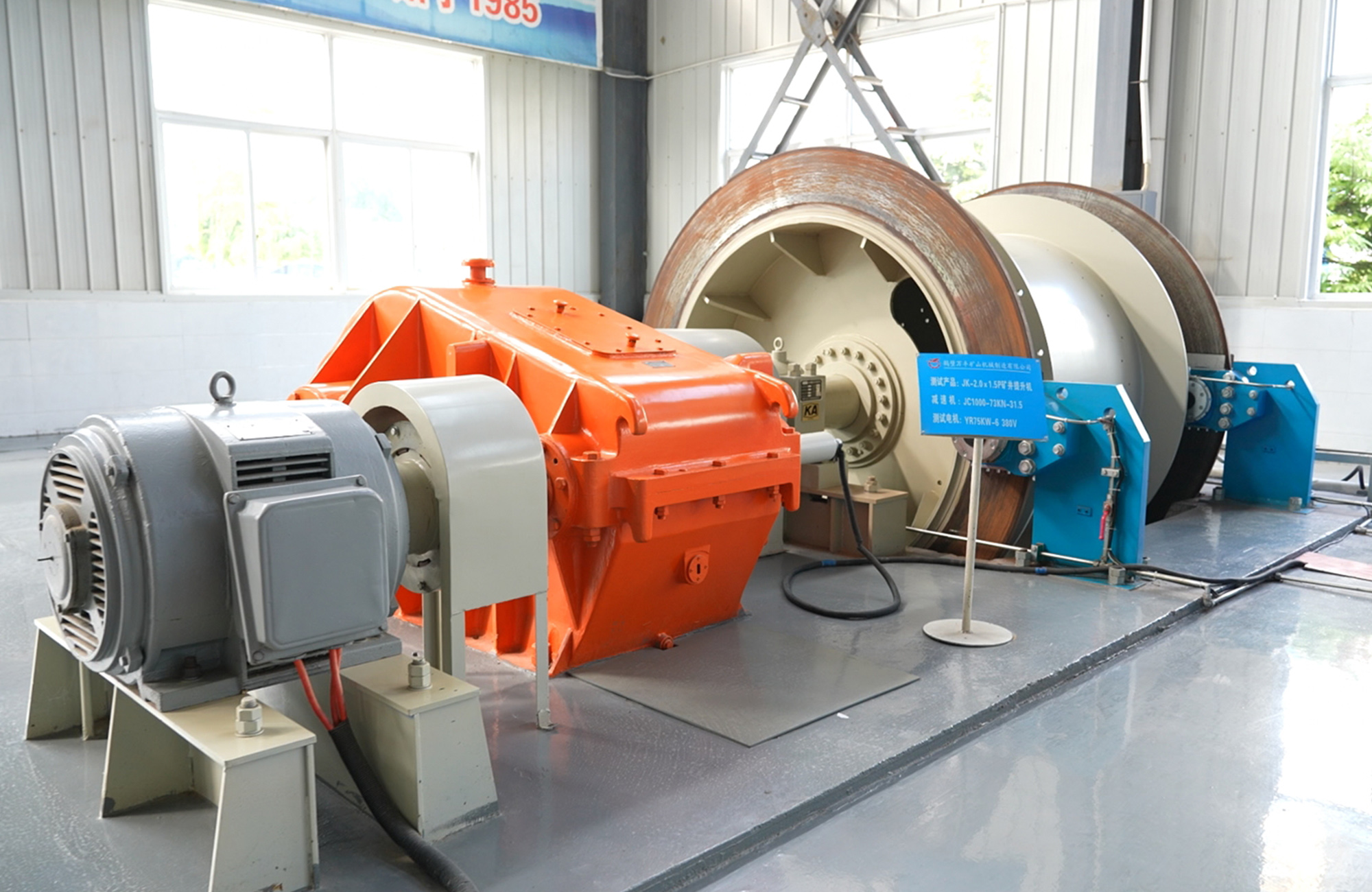

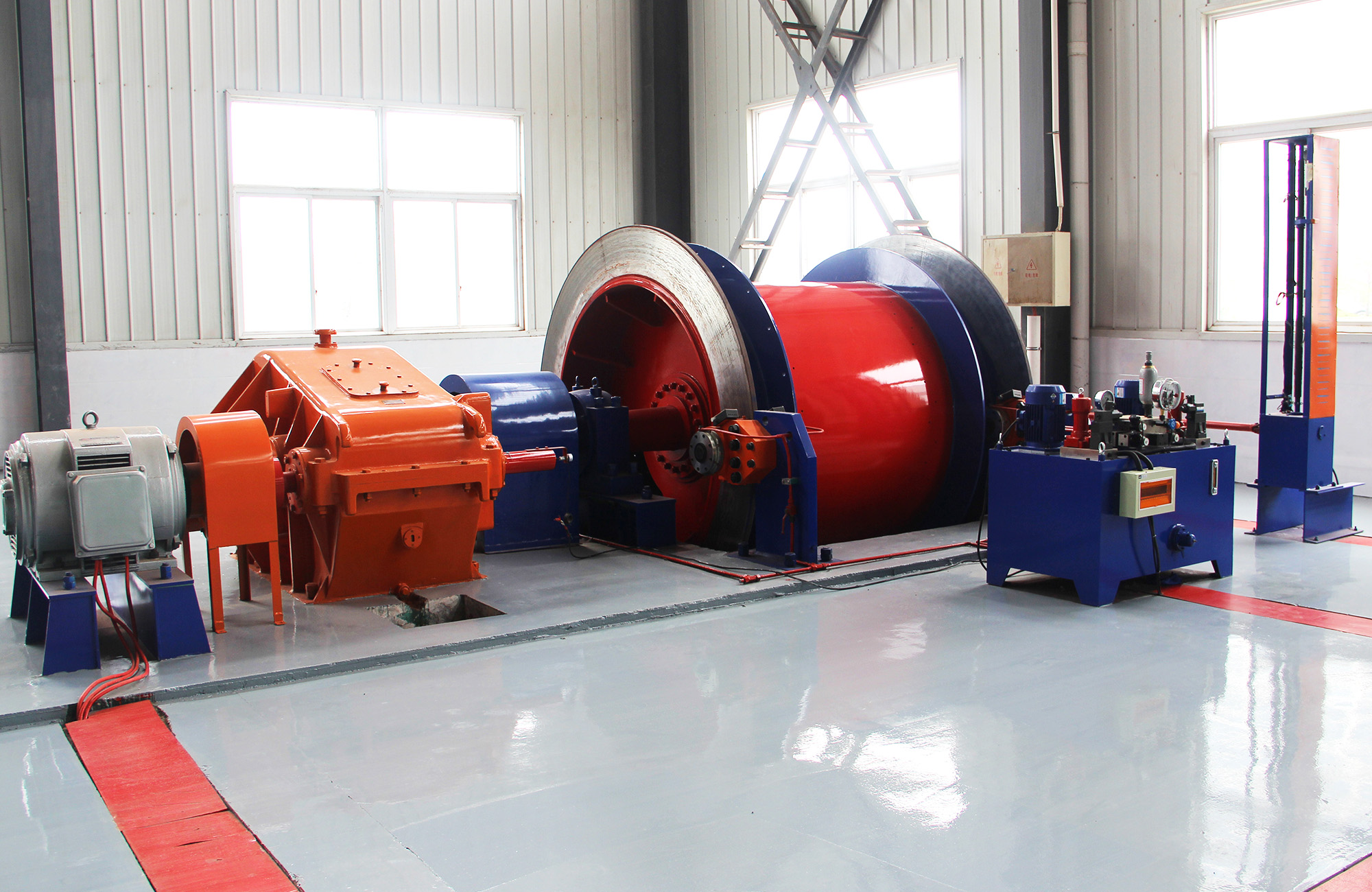

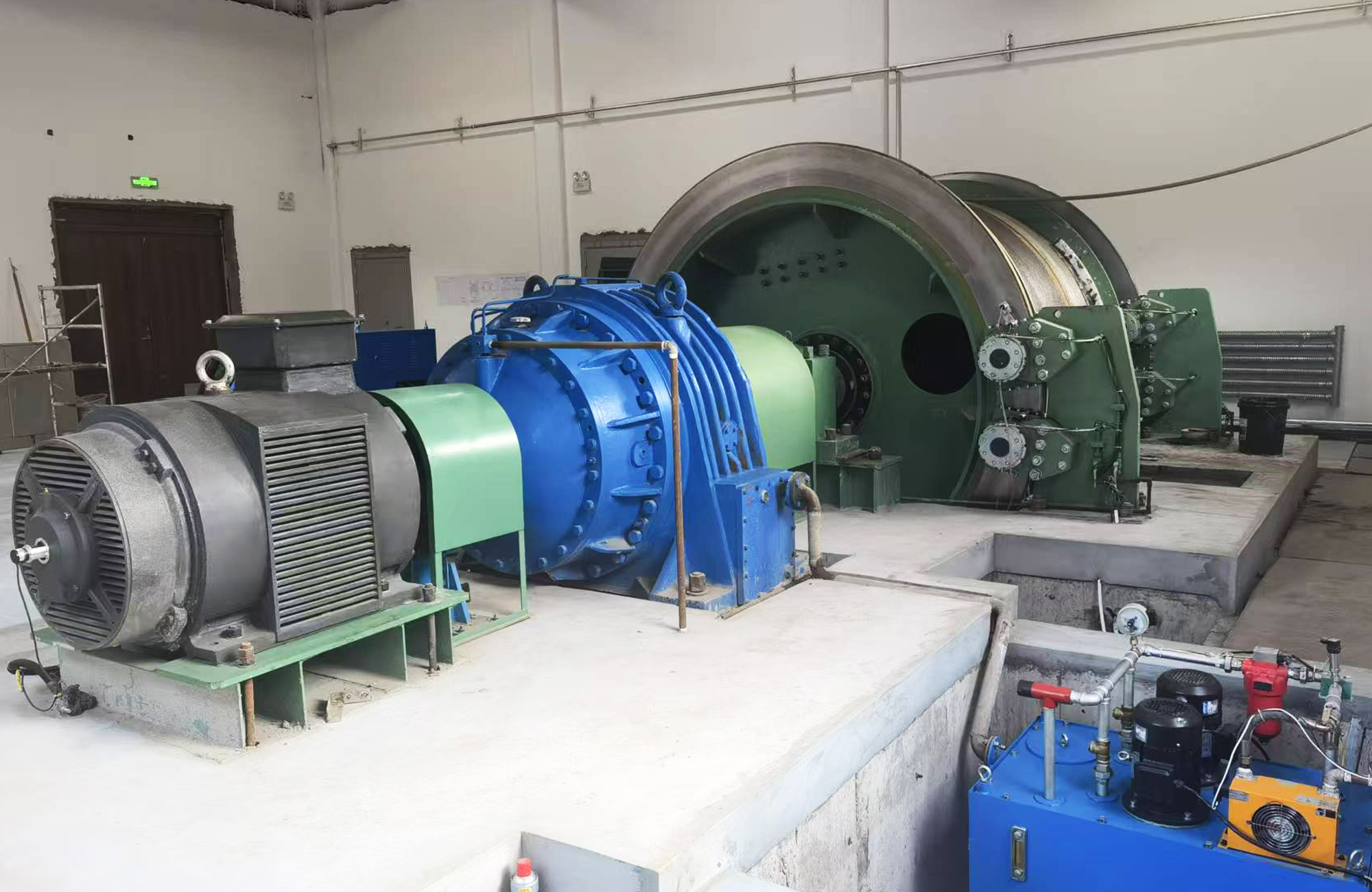

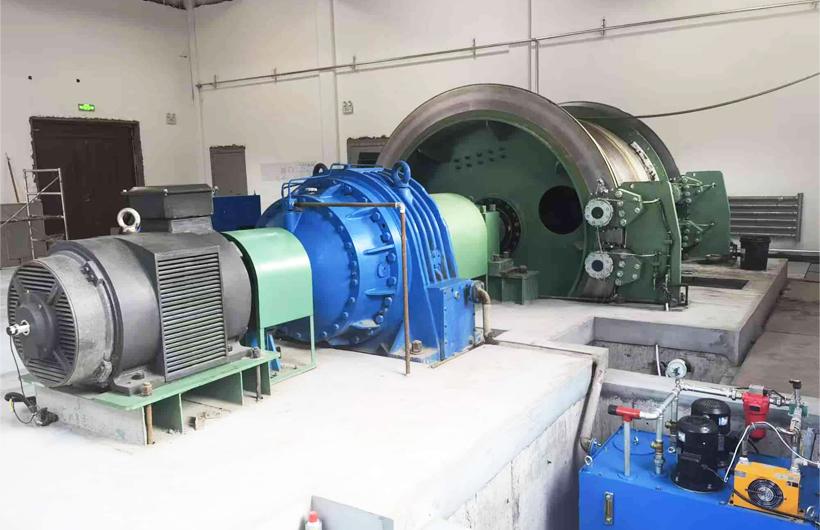

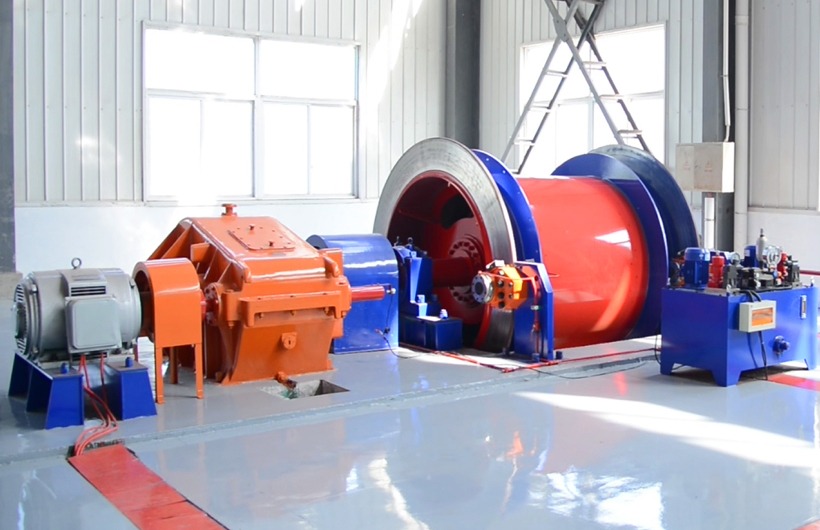

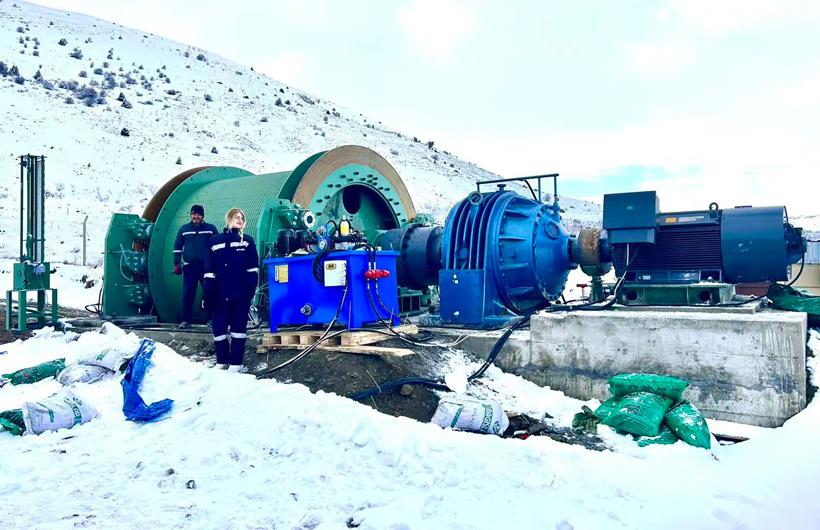

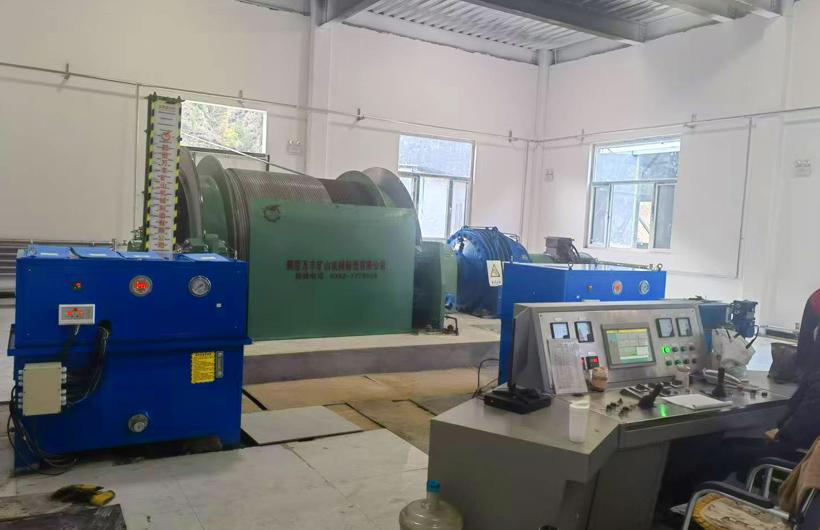

The hoist adopts a modular design, integrating a main shaft assembly, reducer, YVF variable-frequency motor, and an intelligent electrical control system. During operation, the variable-frequency motor drives the reducer through an elastic coupling. The speed is reduced via a two-stage helical gear transmission, and the rotation is then transmitted to the drum via a drum gear coupling. The brake control system precisely regulates the motor's forward and reverse rotation as well as speed adjustment, enabling intelligent winding and unwinding of the wire rope to accomplish lifting tasks. The system features closed-loop speed control, travel detection, and a control system that enables full-process monitoring and multiple protections, ensuring smooth wire rope handling and an efficient, stable, and reliable lifting process.

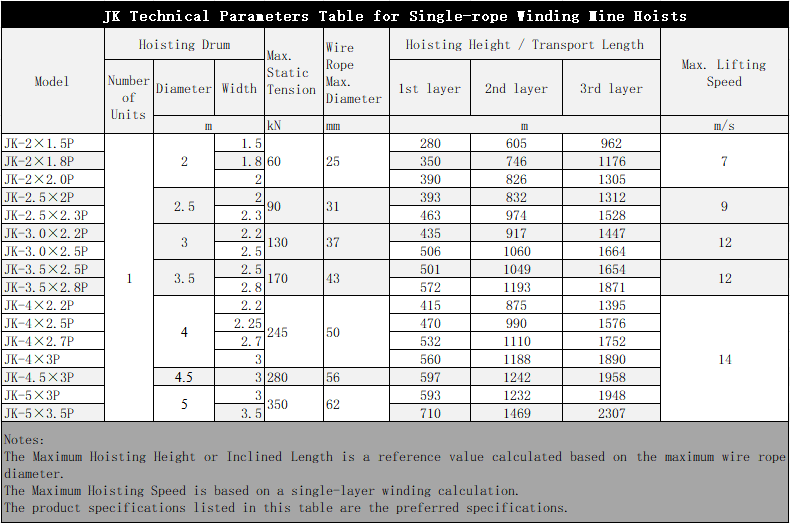

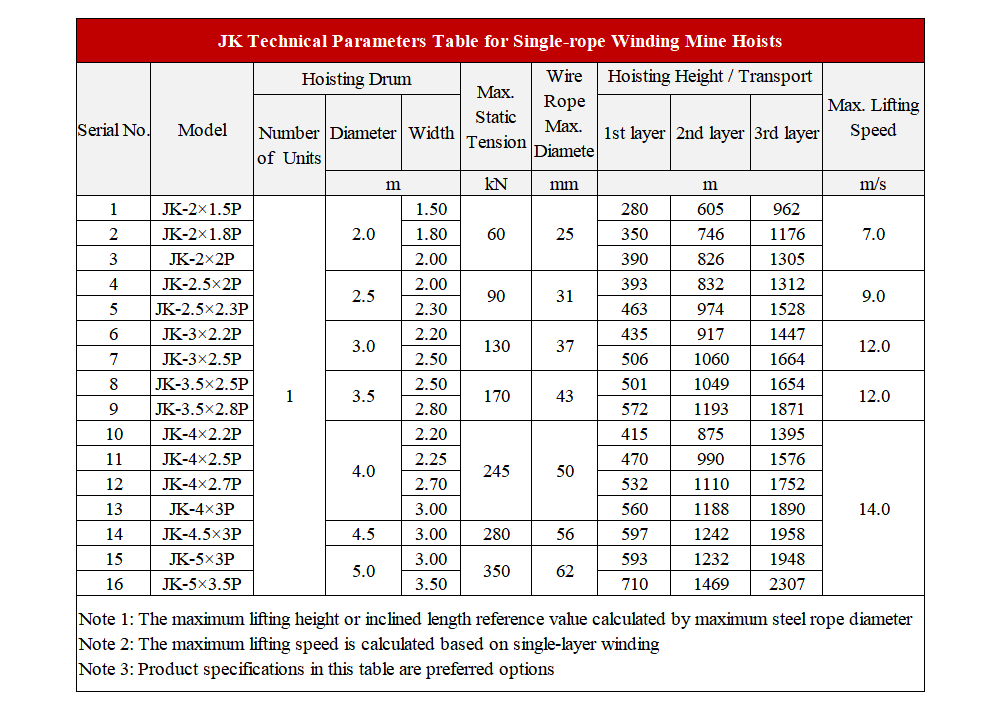

| JK Technical Parameters Table for Single-rope Winding Mine Hoists |
No. | Product Model | Hoisting Drum | Max Static Tension | Wire Rope Max Diameter | Hoisting Height / Transport Length | Max Lifting Speed |
Quantity | Diameter | Width | HSingle-layer | Double-layer | Triple-layer |
piece(s) | m | kN | mm | m | m/s |
1 | JK-2X1 .5P | 1 | 2 | 1.5 | 60 | 25 | 280 | 605 | 962 | 7 |
2 | JK-2X1 .8P | 1.8 | 350 | 746 | 1176 |
3 | JK-2X2P | 2 | 390 | 826 | 1305 |
4 | JK-2 .5X2P | 2.5 | 2 | 90 | 31 | 393 | 832 | 1312 | 9 |
5 | JK-2 .5X2 .3P | 2.3 | 463 | 974 | 1528 |
6 | JK-3X2 .2P | 3 | 2.2 | 130 | 37 | 435 | 917 | 1447 | 12 |
7 | JK-3X2 .5P | 2.5 | 506 | 1060 | 1664 |
8 | JK-3 .5X2 .5P | 3.5 | 2.5 | 170 | 43 | 501 | 1049 | 1654 | 12 |
9 | JK-3 .5X2 .8P | 2.8 | 572 | 1193 | 1871 |
10 | JK-4X2 .2P | 4 | 2.2 | 245 | 50 | 415 | 875 | 1395 | 14 |
11 | JK-4X2 .5P | 2.25 | 470 | 990 | 1576 |
12 | JK-4X2 .7P | 2.7 | 532 | 1110 | 1752 |
13 | JK-4X3P | 3 | 560 | 1188 | 1890 |
14 | JK-4 .5X3P | 4.5 | 3 | 280 | 56 | 597 | 1242 | 1958 |
15 | JK-5X3P | 5 | 3 | 350 | 62 | 593 | 1232 | 1948 |
16 | JK-5X3 .5P | 3.5 | 710 | 1469 | 2307 |
Notes: The Maximum Hoisting Height or Inclined Length is a reference value calculated based on the maximum wire rope diameter. The Maximum Hoisting Speed is based on a single-layer winding calculation. The product specifications listed in this table are the preferred specifications. |
