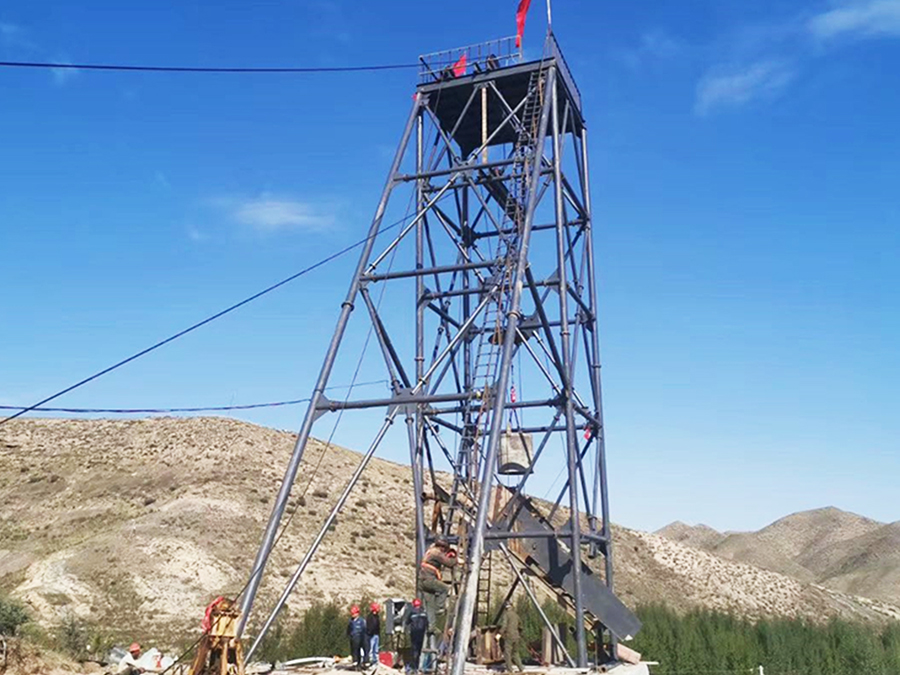

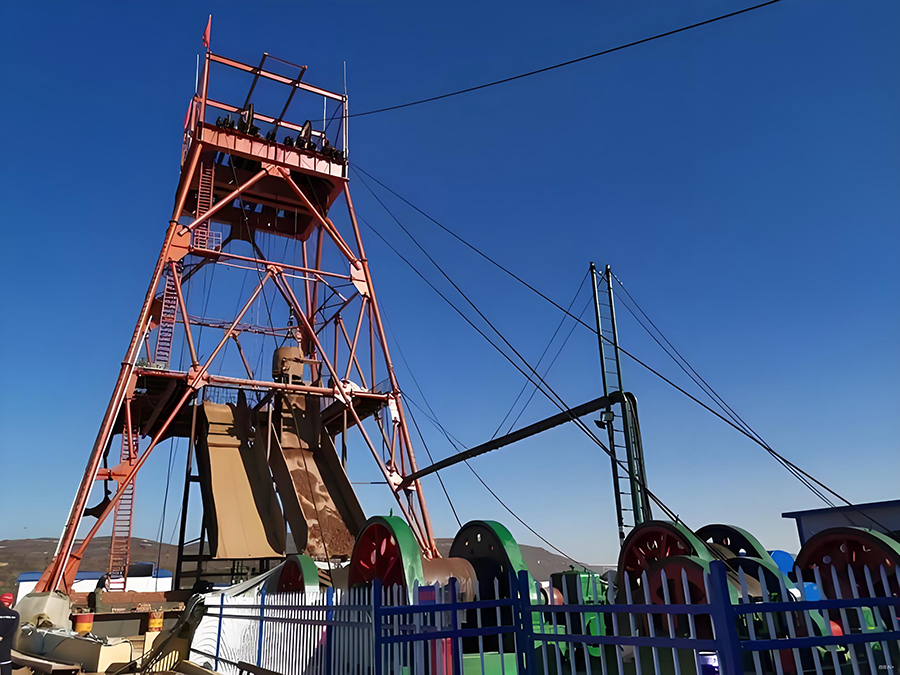

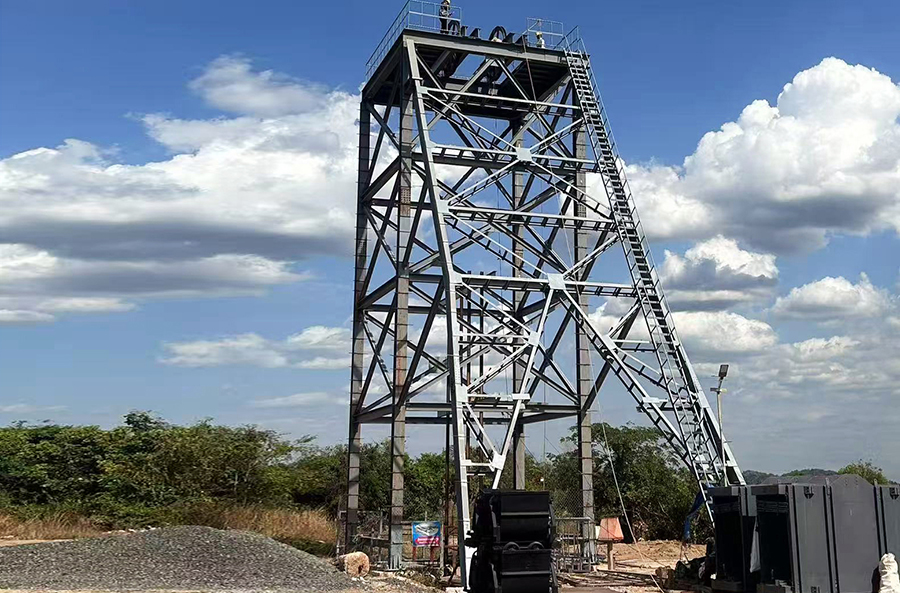

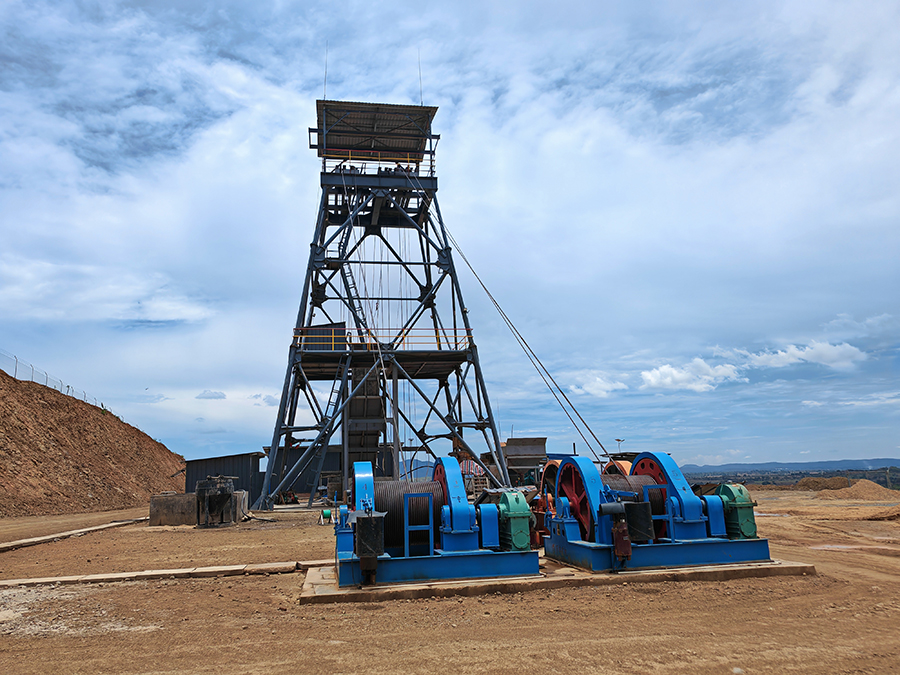

Shaft Sinking Headframe

>Product Application Range

This shaft sinking headframe is a large-scale temporary steel structure system specifically designed for vertical shaft construction, offering high adaptability, efficiency, and cost-effectiveness. It is suitable for vertical shaft projects in various mines, including metal and non-metallic mines. It can be flexibly configured according to different shaft diameters, depths, and process requirements, providing a reliable aerial working and load-transfer platform for shaft excavation.

>Structural Features and Working Principle

Modular Design: Utilizes standardized steel structures with bolted connections, enabling rapid assembly, disassembly, and reuse.Clear Load Transfer:Vertical Loads:Head sheaves → Sheave platform → Main truss → Foundation → Ground Horizontal Loads: Transferred and resolved through spatial trusses and bracing systems.Multi-Functional Integration:

Sheave Platform: Centralized control hub for hoisting and suspension systems.Muck Tipping Platform:Area for muck transfer operations.Open Shaft Center: Ensures unobstructed passage for large equipment.

High Adaptability: Supports customization for heavy equipment (e.g., drill rigs) and specialized construction methods (e.g., freezing method, drilling method).System Positioning: Integrates hoisting, suspension, material transfer, and protective functions, serving as a critical system for safe and rapid vertical shaft construction.
