Side discharge mine car efficient muck rock transport equipment, custom built mines tunnel culvert engineering scenarios. Side tipping self unloading structure, preset curved rail device achieves fixed point automatic unloading.

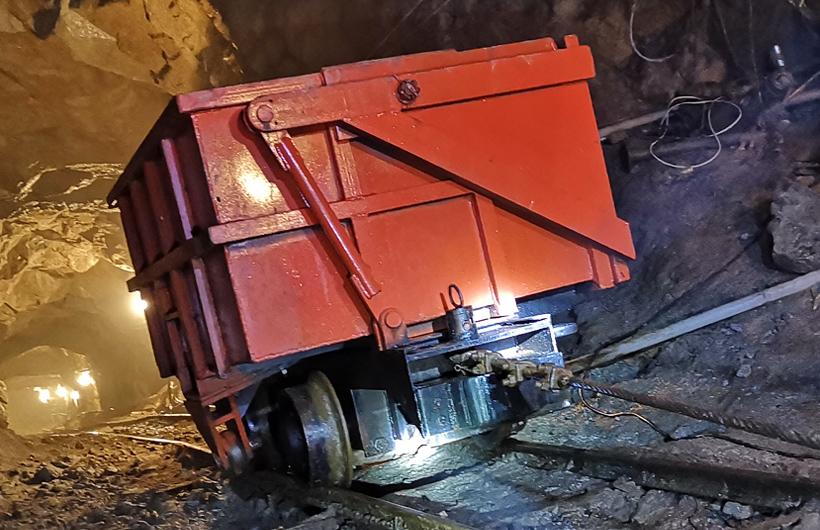

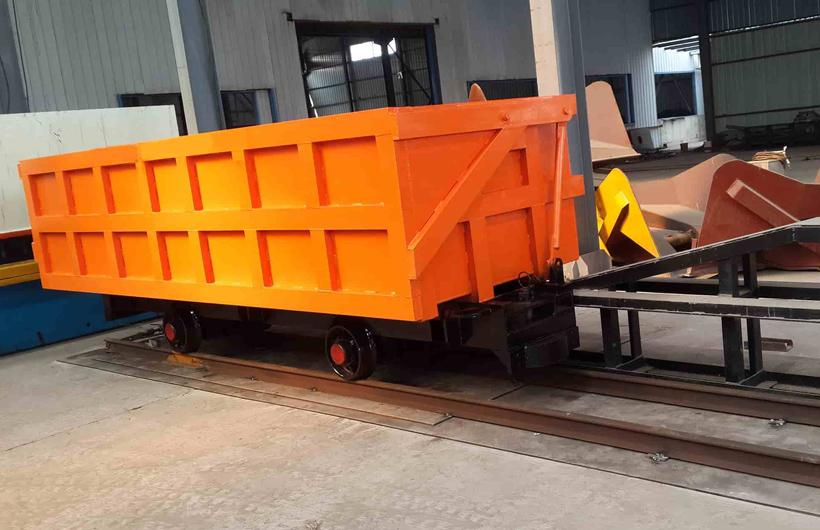

Stable running, high unloading efficiency, easy operation, greatly upgraded material transfer efficiency work continuity. Single side curved rail side discharge mine car includes wheel sets, frame, pins, car body, unloading curved rail, tipping wheel, door hook, car door, support iron tie rod and other parts. Single side curved rail side discharge mine car serves simple matching muck removal transport equipment. Applicable metallurgy, mines, coal mines, railway tunnels, highway tunnels, hydraulic culverts, underground roadways, military culverts tunneling construction projects.
Structural Features & Working Principle
Car Body & Door System: High strength steel plate welding. Active side door. Reinforced hinges + bolt mechanism. Single side opening.
Running Mechanism: Heavy cast steel wheels. Rolling bearings. Low running resistance. Adapt complex track conditions.
Frame & Hinge Mechanism: Integral welded frame. Fixed hinge support (one side). Movable unloading wheel (other side).
Unloading Curved Rail System: Fixed curved rail. Guide section. Reset section. Install on ground or trestle platform.

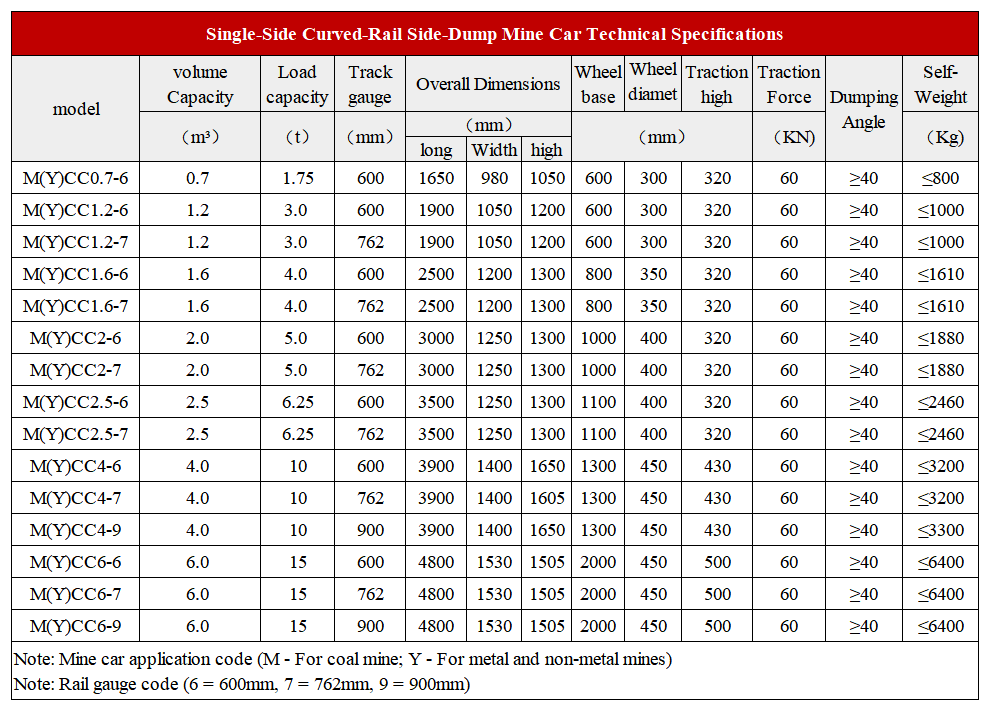

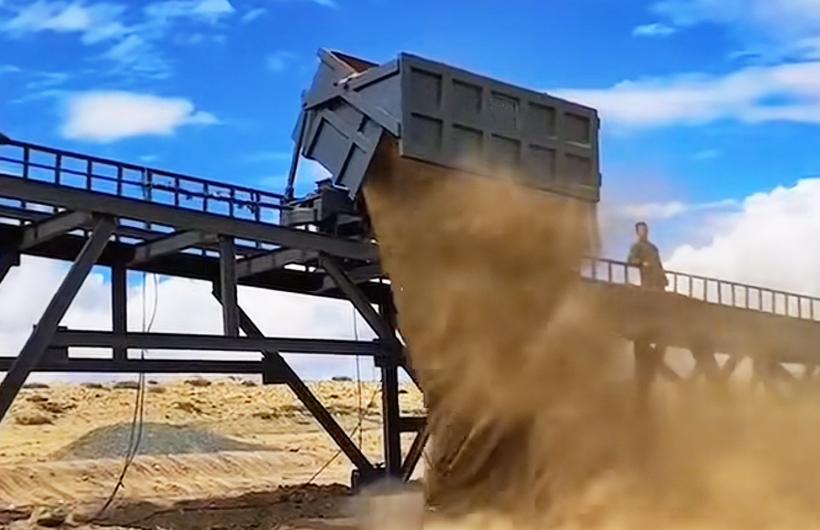

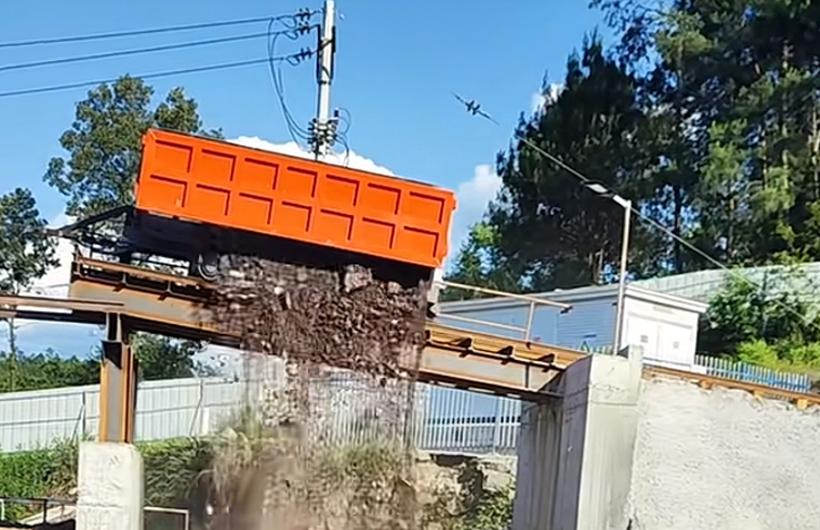

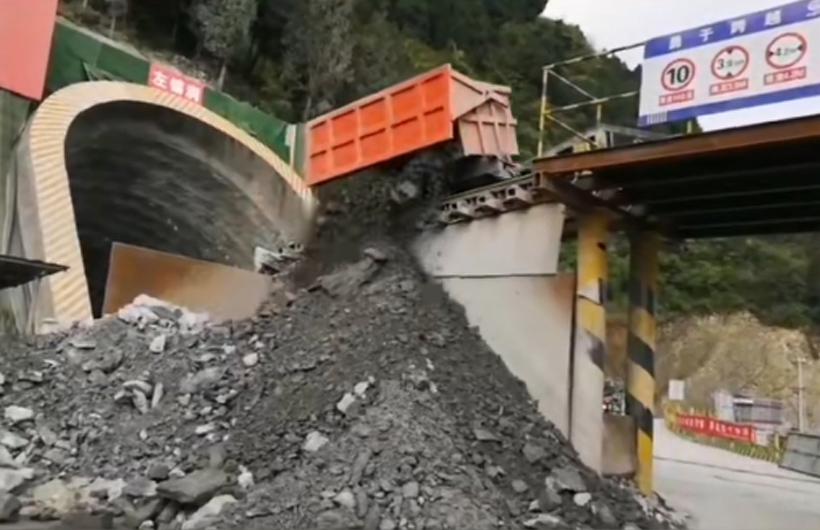

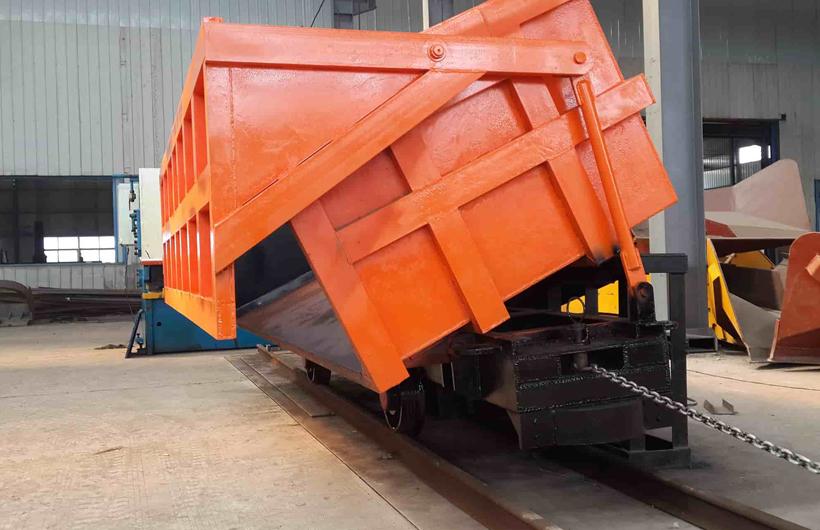

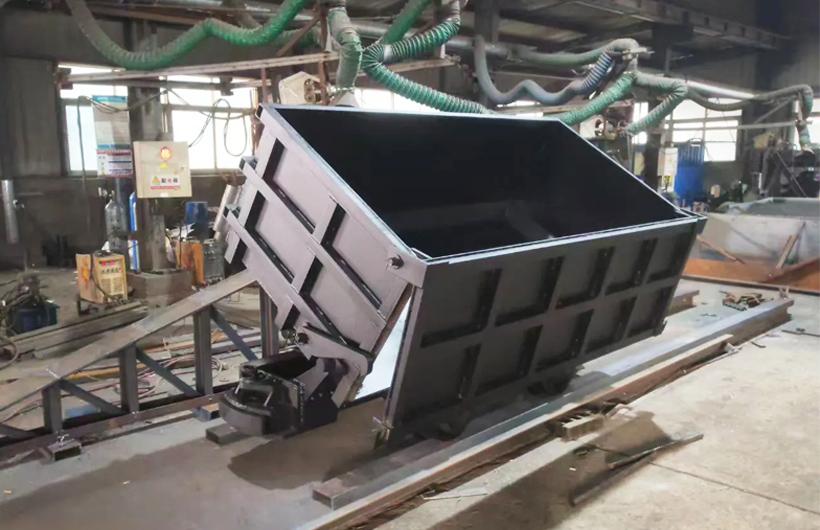

Working Process: Mine car travels to unloading position. Door unloading wheel engages fixed rail. Rail uphill opens door outward. Car body tilts sideways.
Discharge muck/rock. Wheel enters rail downhill. Car body resets under gravity. Door closes. Complete unloading cycle.
Product Features:
○ Fixed point high efficiency unloading. Rail triggered. No external power. Accurate/fast discharge.
○ Robust durable structure. Reinforced key parts. Adapt high load high frequency operation.
