Sinking platform Mining

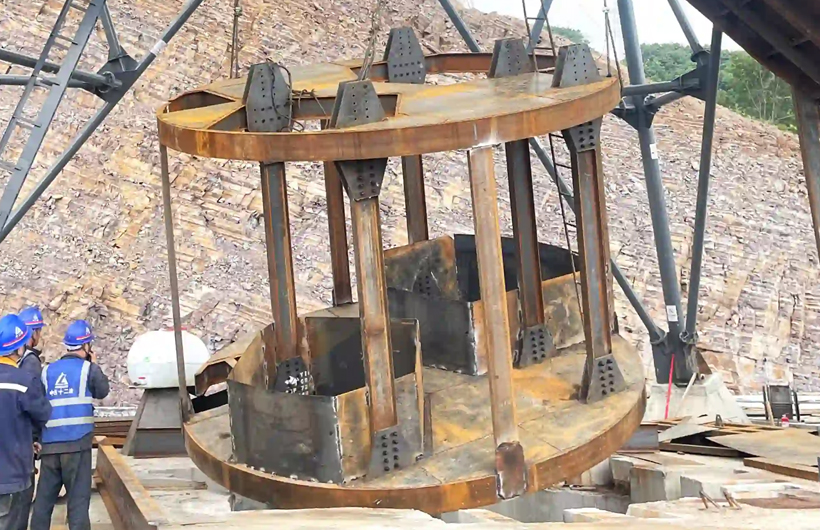

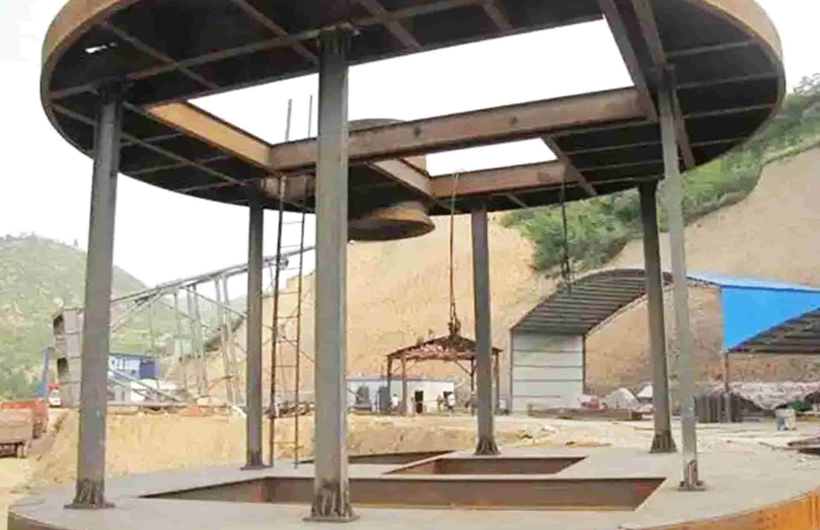

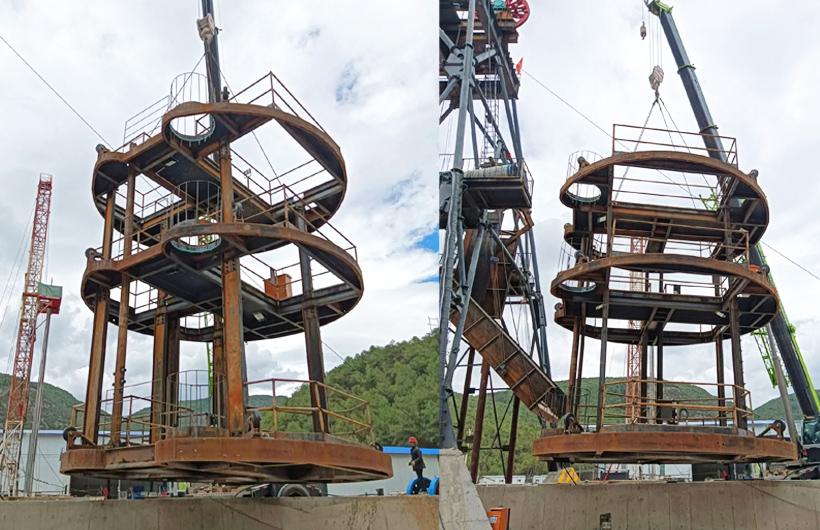

Sinking stage: Shaft construction support, equipment installation, personnel work core platform. Double multi layer steel structure layout. Steel wire rope suspension lifting lowering. I beam main beams, channel steel secondary beams, anti slip steel plates equipped. Floor spacing 4~6 meters.

Core tasks: shaft wall lining, bolt mounting, guide beam positioning. Worker operation platform, equipment transport passage integrated function.

Applicable coal mine metal mine various shaft projects. Covers excavation, shaft lining deep freezing shaft complex section, guide beam permanent installation key stages.

Structural Features & Working Principle:

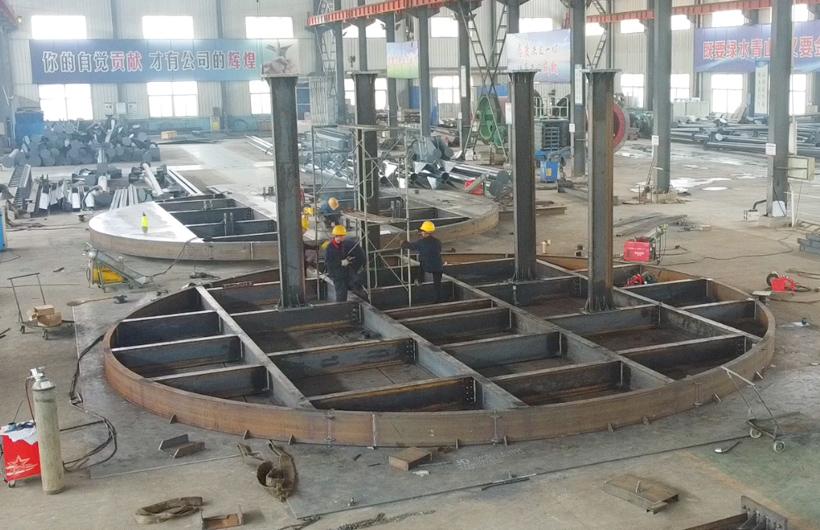

Core frame: I beam + channel steel primary/secondary beams. Form robust double/multi layer steel structure.

Work platform: Anti slip steel plates. Standard floor height 4~6m. Inter layer passages.

Modern design: Multi functional integrated layer. Centralized layout of construction equipment, pipelines.

Traditional mode (suspended): Winch driven. Steel wire rope lifting/lowering.

Advanced mode (walking type): Hydraulic cylinder drive. Alternate "stepping" on shaft wall. Self lifting, self stabilizing.

Key device (fixator): Lateral elastic wheels press shaft wall. Quick fine tuning, active stabilization. Protect shaft wall. Adapt complex conditions.

Core progress: Modern stage with integrated design (walking type + fixator). Boost deep shaft construction efficiency, safety.

Full cycle core platform: For all shaft construction stages (excavation, lining, installation). Indispensable indeep freezing shaft complex sections, simultaneous operations.
