Mining bucket

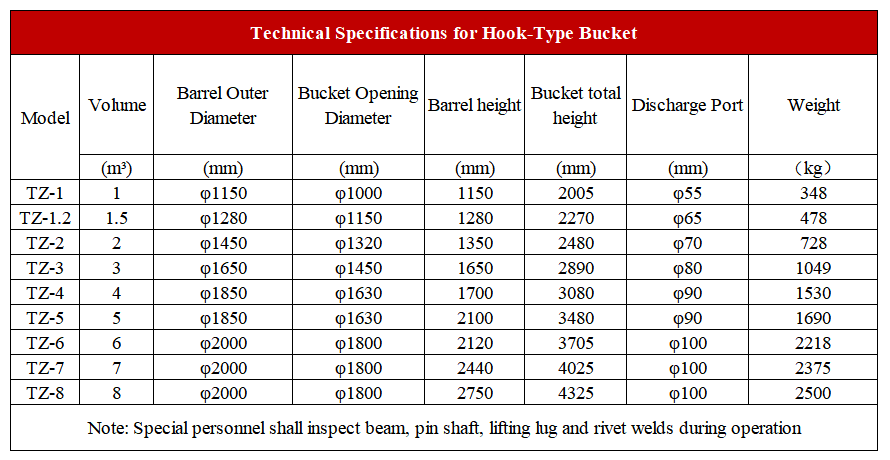

Volume: 1m³, 2m³, 3m³, 4m³, 5m³, 6m³, 7m³, 8m³ hook type kibble buckets are hoisting equipment for shaft sinking and construction, suitable for multiple scenarios.

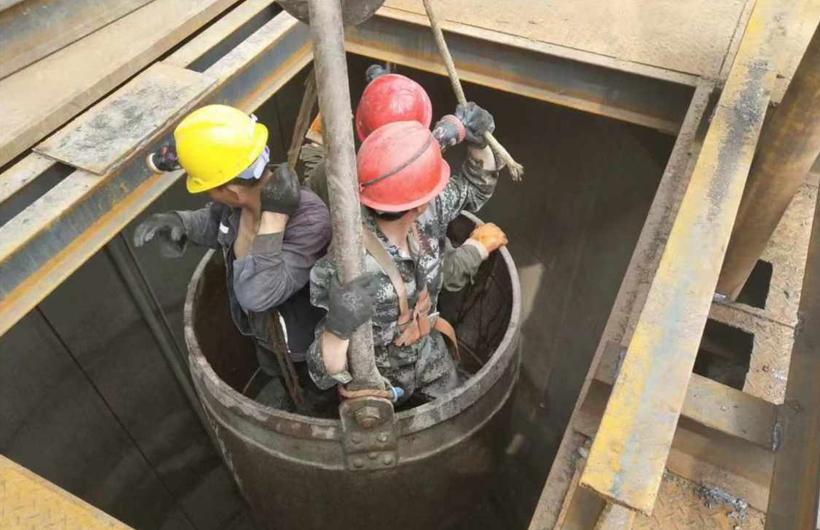

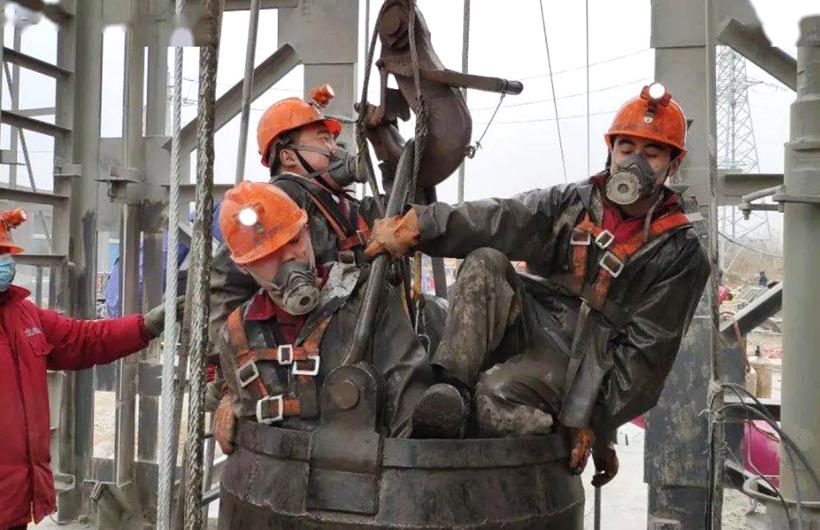

The hook type kibble bucket is an important hoisting equipment during the shaft sinking phase and the initial construction stage with a headframe. It is suitable for various operation scenarios including shaft excavation, rock waste hoisting, personnel and material transportation, and temporary drainage. Often used in conjunction with an automatic tipping device.

Structural Features & Working Principle:

Modular components: beam, body, pin, ear. Sturdy, easy assembly/maintenance.

Ear & pin + hook design: stable hanging, quick connection/disconnection. Suitable for frequent hoisting.

Optimized body volume/structure: rock loading + drainage. Multi-purpose in shaft construction.

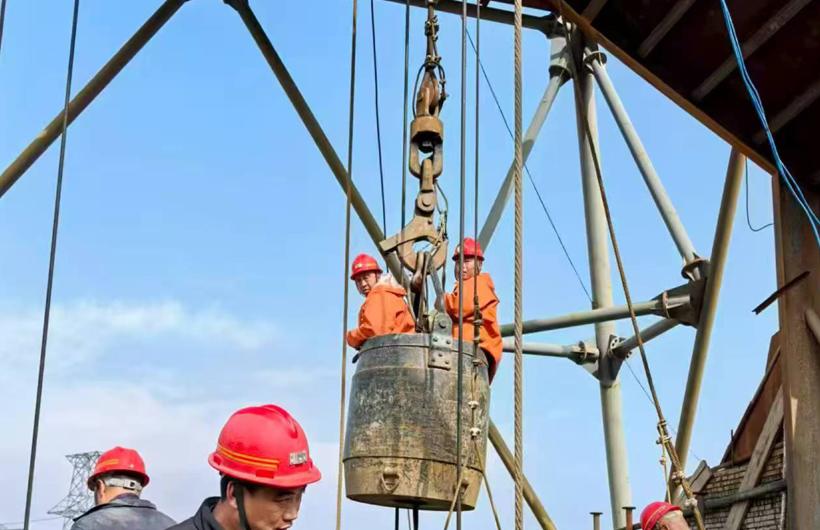

Hoisting: bucket connects to hoisting rope via hook. Stable vertical movement.

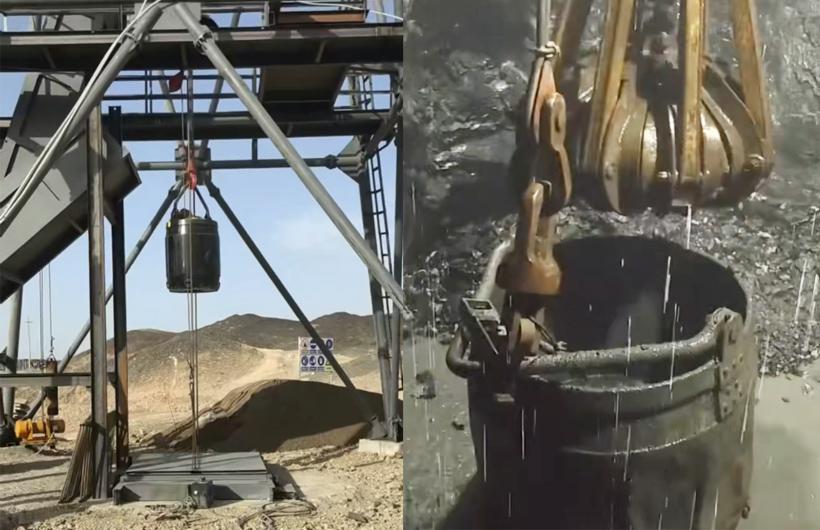

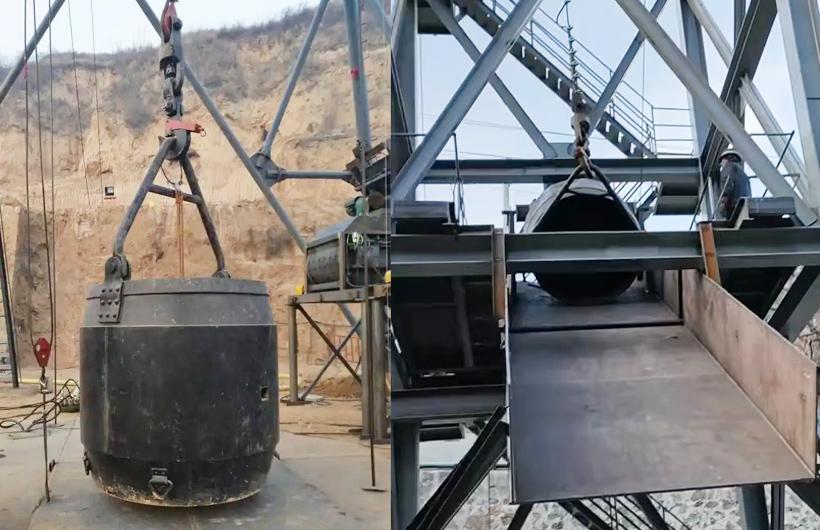

Dumping position: auto tipping device tilts bucket. Fast rock discharge.

Drainage mode: bucket as temporary storage/container. Improves construction efficiency.

Core equipment for shaft construction: designed for sinking/headframe initial phase. Key for personnel, rock, material transport, temporary drainage.

Multi functional: optimized body. Efficient rock hoisting + temporary drainage. Meets shaft construction needs.

Modular design: sturdy, easy assembly/maintenance. Hook/pin design ensures stable hanging, quick handling.

Efficient coordination: compatible with auto tipping device. Forms high efficiency system. Auto tilting, fast discharge. Boosts efficiency.
