Device supports gradient vehicle speed load capacity based systematic configuration. Offers reliable protection diverse inclined transportation scenarios. Core equipment safeguards mining industrial rail transportation safety.
Device adapts all inclined rail transport systems runaway risks. Delivers key safety protection listed scenarios.

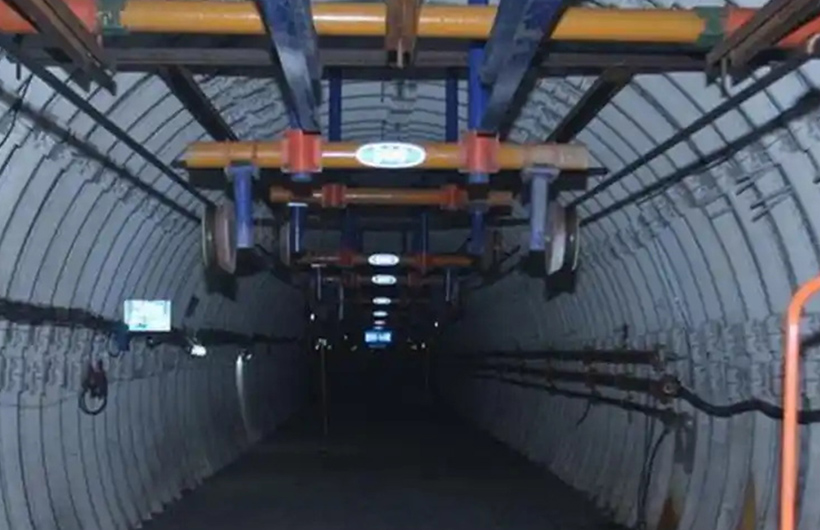

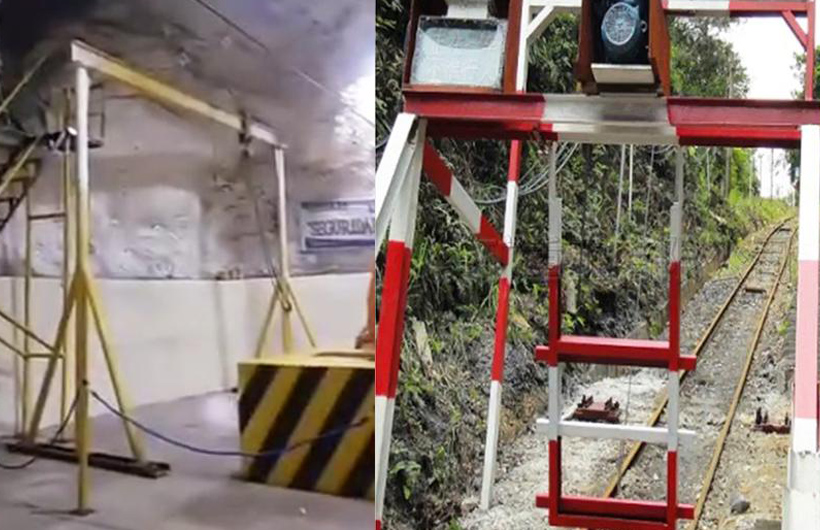

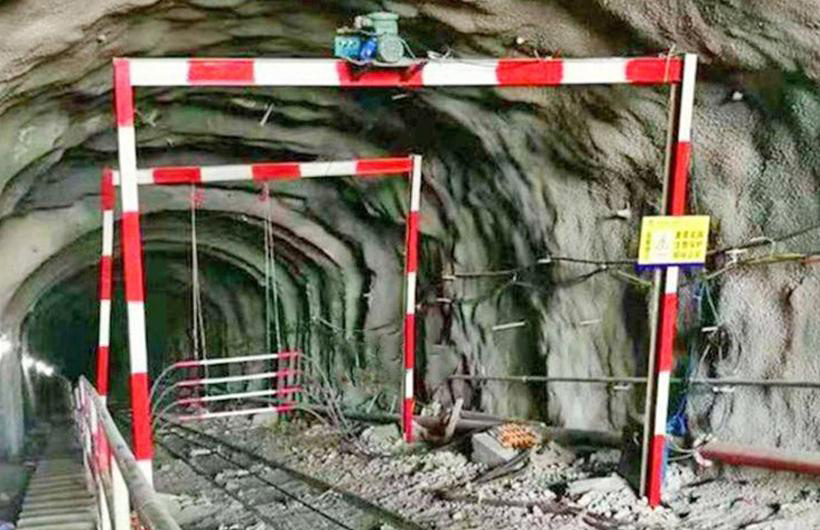

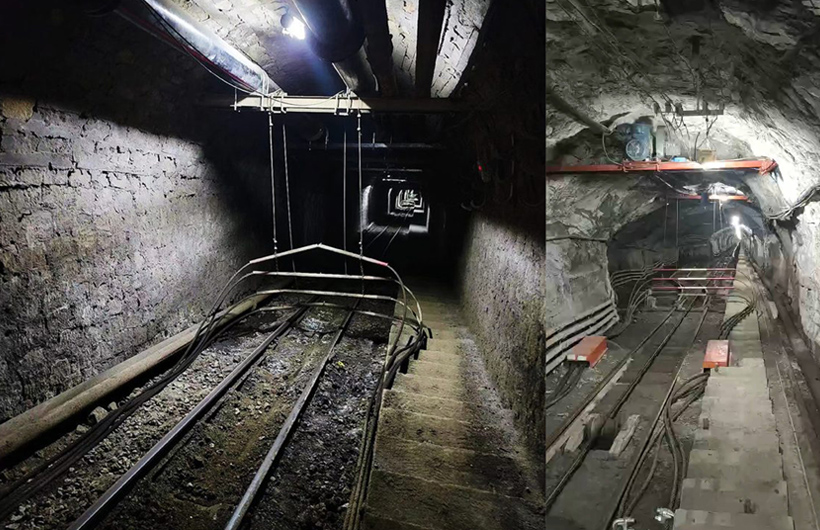

Mining Transport Systems: Main/auxiliary inclined shafts, mining district up/downhills in coal mines, metal mines, non metal mines. Safety protection for material, equipment, personnel rail transport.
Structure Features & Working Principle:
Intelligent Control System: Built in PLC controller, integrated signal processing, closed loop linkage modules, real time monitoring of vehicle parameters.

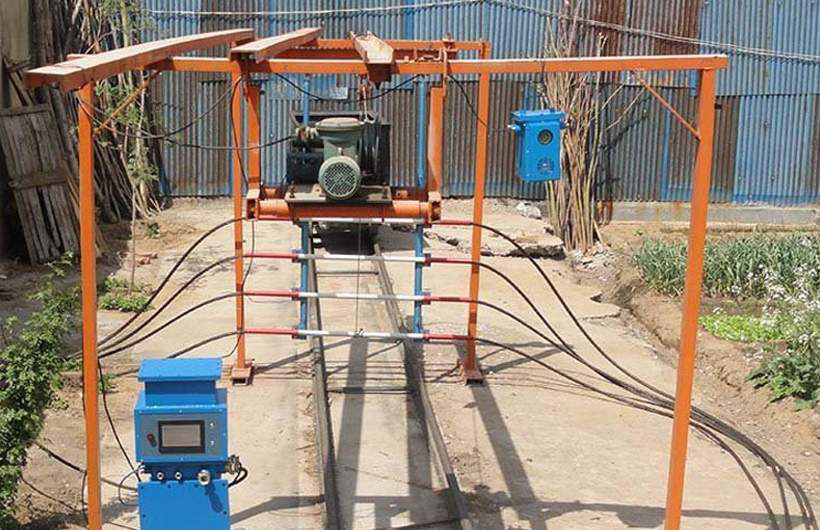

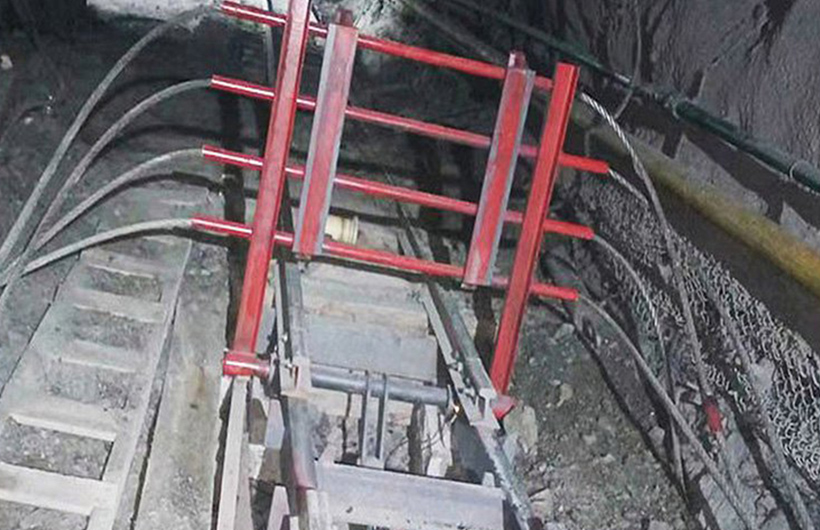

High strength Execution Mechanism: Alloy steel car stopper frame. Hydraulic/electric drive fast lifting/lowering. Multi stage buffer braking units.
Comprehensive Monitoring System: Speed, position, tension sensors. Full process real time monitoring.
Stable Protection Structure: Secure installation base. Electric control and hydraulic units with explosion proof, dust proof, moisture proof design.
User friendly HMI: Local operation panel. Remote monitoring interface. On site control and data upload supported.
The device achieves dynamic protection via "monitor judge execute" closed loop:
Real time Monitoring: Sensors collect speed, position, wire rope status data continuously.
Automatic Passage: Car stopper lifts/lowers intelligently as commanded during normal vehicle passage.
Abnormal Interception: Millisecond level car stopper closure and buffer braking on overspeed, broken rope detected.
Alarm & Recovery: Synchronous audible visual alarm. Remote reset and system self check supported.
